Overview
Our internal built-in antennas are developed for embedded integration in IoT devices, smart hardware, portable gadgets, industrial terminals and vehicle equipment. Eliminating protruding external antennas, ultra-thin integrated design fits perfectly inside device housing, balancing seamless appearance and stable wireless signal performance.
Four mainstream technologies available: FPC flexible antenna, PCB patch antenna, ceramic active GNSS antenna, LDS laser direct structuring antenna. Custom R&D one-on-one based on client’s internal space, frequency requirements and cost budget. Direct supply from manufacturer without middlemen markup.
| Type | 4G Antenna | Antenna Gain | 5dbi |
| Frequency Band | Multiband | Connector | IPEX |
| Installation | Built-in | Return Loss | ＜15dbi |
| Module Name | AW G0015 | Origin | Guangdong,China |
| Height | 0.03mm | Antenna Frequency | 700-6000MHz |
| Material | FPC | Polarization | Linear polarizition |
Key Advantages
- Full frequency coverage & stable signal
Compatible with 2.4G WiFi/BLE/ZigBee, WiFi6 5.8G, NFC RF, LoRa 868/915MHz, 4G LTE full band, 5G NR, GPS/Beidou/GLONASS multi-mode positioning. VSWR ≤2.0, high low-noise gain, strong anti-interference performance, stable connection inside sealed devices.
- Ultra-thin flexible design for limited space

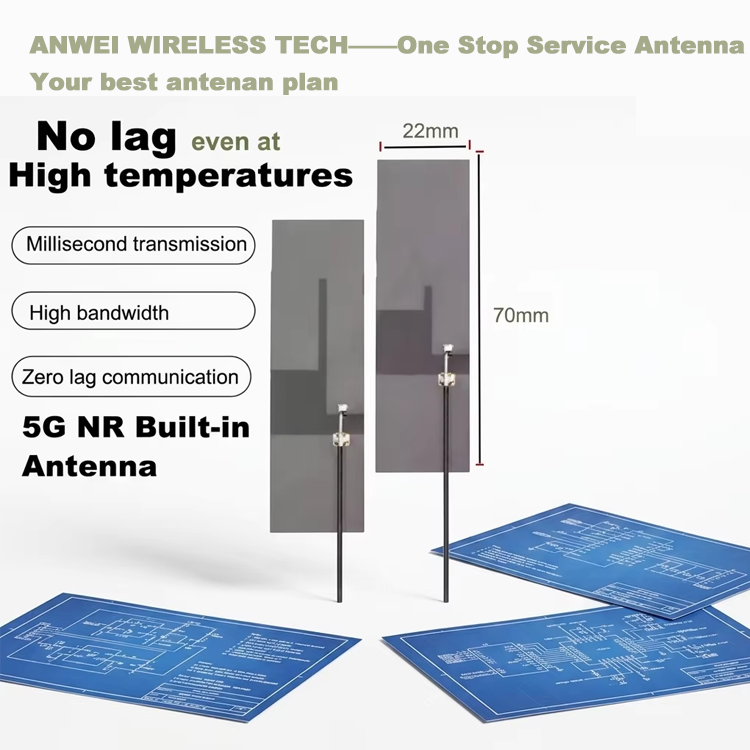

FPC substrate thickness 0.18–0.3mm, bendable with adhesive backing; mini PCB patch as small as 5×5mm, 25×25mm tiny ceramic GNSS antenna, ideal for smart watches, tablets, smart locks, sensors and industrial modules.
- Full-range OEM & ODM customization
- Physical: dimension, cable length, RG1.13/RG0.81 wire
- Connector: IPEX1/IPEX4/IPX/U.FL/SMA solder terminals
- Electrical: gain, 50Ω impedance, resonant frequency, active/passive circuit
- Processing: adhesive tape, shielding layer, reinforcement, gold-plated anti-oxidation
- Custom packaging, silk print logo, technical drawing support
- Mass production & strict quality control
Automatic stamping, soldering and impedance testing, 100% inspection before shipment. High temperature & bending resistance, compliant with consumer & industrial grade standards, ROHS & REACH certificates available.
- Exclusive B2B service
Free test samples; hardware matching technical support; small batch trial order + mass production; dedicated sales for RFQ, fast delivery of datasheet & quotation.
