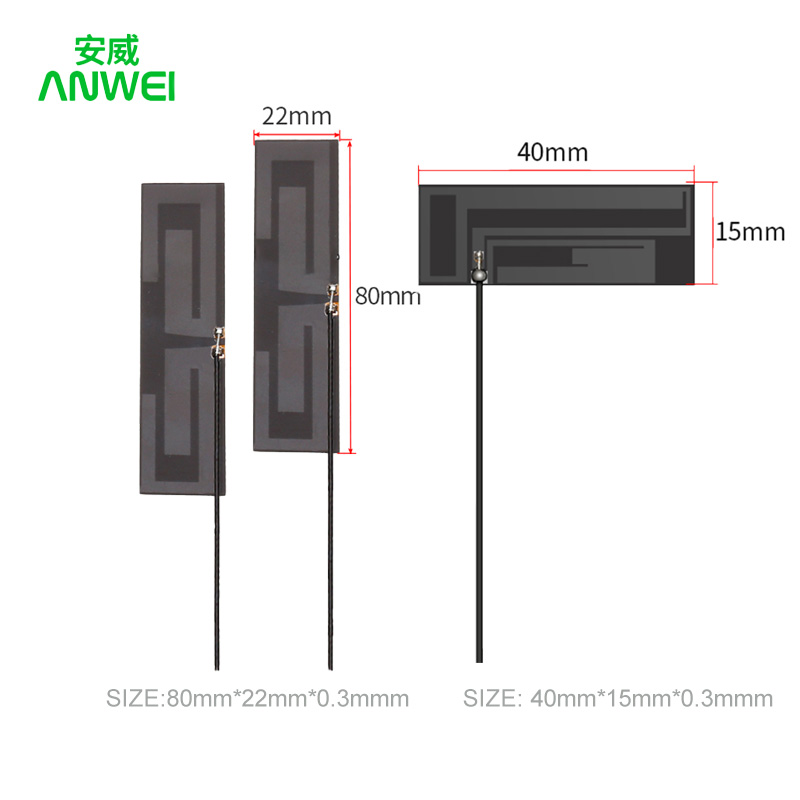

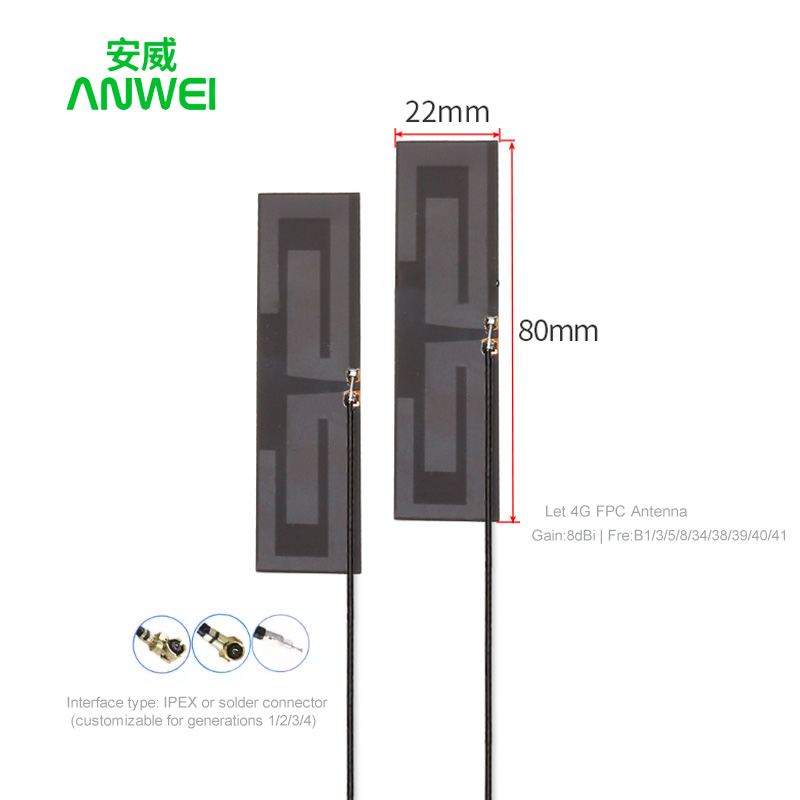

Wideband 4G Antenna
The Wideband 4G Antenna is designed for wireless devices that require reliable and stable 4G cellular connectivity in a compact structure. It supports a broad range of LTE frequency bands and can be customized according to different device sizes, PCB layouts and installation environments.
As an experienced antenna manufacturer, we provide antenna design, prototyping, RF tuning, testing and mass production services for IoT, automotive, industrial and consumer electronic applications.
1. Application
The Wideband 4G Antenna is suitable for wireless products that require stable LTE connectivity while maintaining a compact internal design.
Typical applications include:
- 4G LTE routers and gateways
- IoT devices and smart meters
- GPS trackers and vehicle terminals
- POS and payment terminals
- Security and alarm systems
- Industrial monitoring equipment
- Smart home devices
- Automotive and telematics systems
- Wireless data terminals
The antenna can be integrated into the device housing, making it suitable for applications where installation space is limited. For compact products, a Wideband 4G Internal Antenna provides a flexible solution for reliable cellular communication.
2. Advantages
High Performance
Our High Performance 4G Antenna is optimized according to the target LTE bands, PCB layout, ground plane and available installation space. Proper impedance matching and RF tuning help achieve stable performance on the customer’s actual device.
Wideband Coverage
The Wideband 4G Antenna can cover multiple LTE frequency bands, reducing the need for separate antenna designs for different 4G applications.
Compact Internal Design
The low-profile structure is suitable for installation inside the product housing, making it ideal for compact IoT, industrial and consumer electronic devices.
Flexible Installation

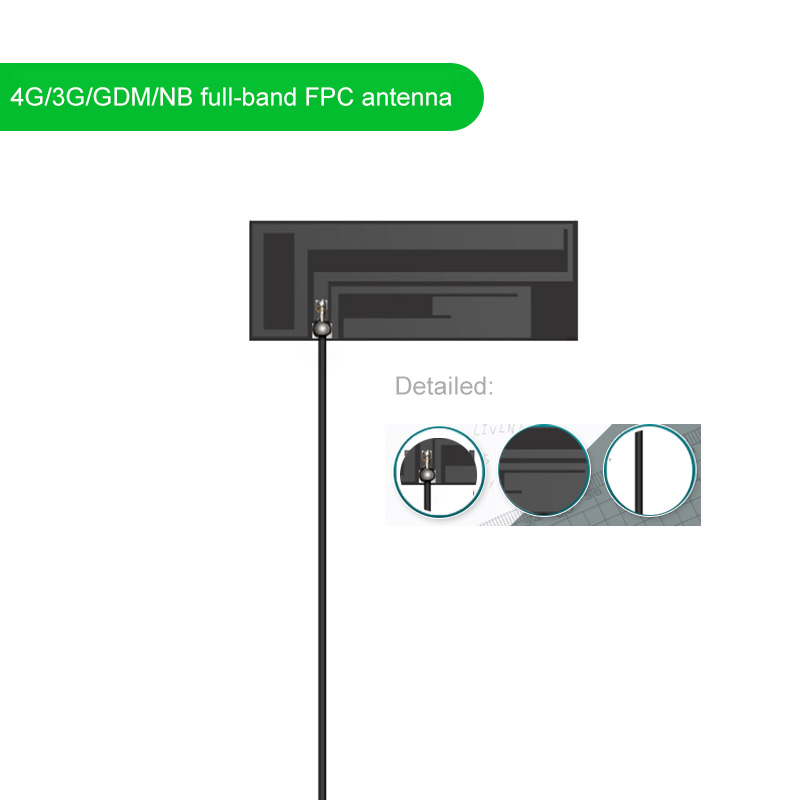

FPC, PCB and other antenna structures are available. Adhesive mounting, PCB mounting and customized installation methods can be selected according to the product design.
Customized RF Solution
Antenna dimensions, frequency bands, cable length, connector and mounting method can be customized according to your product requirements.
High Gain Options
For applications requiring stronger signal reception and transmission, a High Gain 4G LTE Antenna can be developed according to the target frequency bands and available installation space.
3. Specifications
Wideband 4G Antenna Specifications
Wide Band LTE Antenna Set Up
Proper antenna set up is important for achieving stable LTE performance. Antenna position, surrounding components, PCB ground plane and housing materials can all affect the final RF performance.
For customized projects, our engineers can optimize the antenna structure and perform RF tuning based on the customer’s actual device.
4. Customization Process
We provide a simple customization process for the Wideband 4G Antenna:
1. Requirement Confirmation
Confirm frequency bands, antenna dimensions, installation space and performance requirements.
2. Design & Sampling
Design the antenna according to the device structure and provide samples for evaluation.
3. RF Tuning & Testing
Perform impedance matching and RF testing on the actual product.
4. Mass Production
Finalize the specifications and proceed with quality-controlled mass production.
5. Shipping & Delivery
We support sample and bulk orders with flexible shipping options, including express, air freight and sea freight.
Delivery time depends on the antenna design, customization requirements and order quantity. The specific lead time will be confirmed before production.
6. FAQ
What is a Wideband 4G Antenna?
A Wideband 4G Antenna is designed to cover multiple LTE frequency bands for reliable cellular communication. It is commonly used in IoT devices, routers, automotive equipment and industrial wireless products.
What are the advantages of a wideband 4G antenna?
A wideband design can support multiple LTE frequency bands with a single antenna solution, providing greater flexibility for different wireless applications.
Can the Wideband 4G Antenna be customized?
Yes. We can customize the antenna’s frequency range, dimensions, cable length, connector, mounting method and RF performance according to your device requirements.
Can you provide a high-gain 4G antenna?
Yes. We can develop a High Gain 4G LTE Antenna according to the target frequency bands, available space, PCB layout and actual product structure.
Can the antenna be installed inside the device?
Yes. Our Wideband 4G Internal Antenna is designed for compact wireless devices where an internal antenna solution is required.
Can you provide antenna samples?
Yes. We provide customized samples for RF evaluation and testing before mass production.
